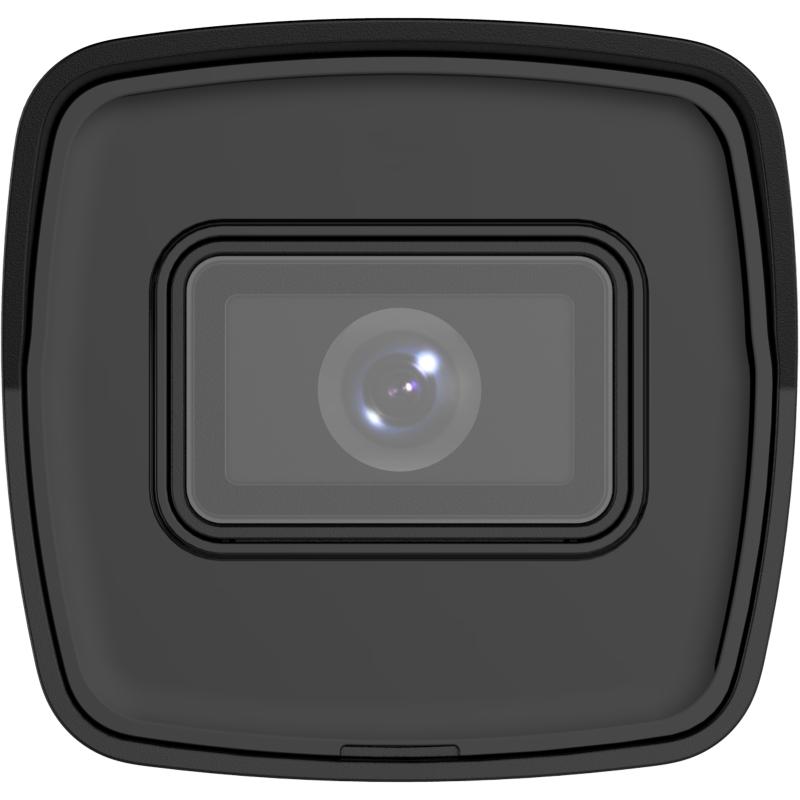

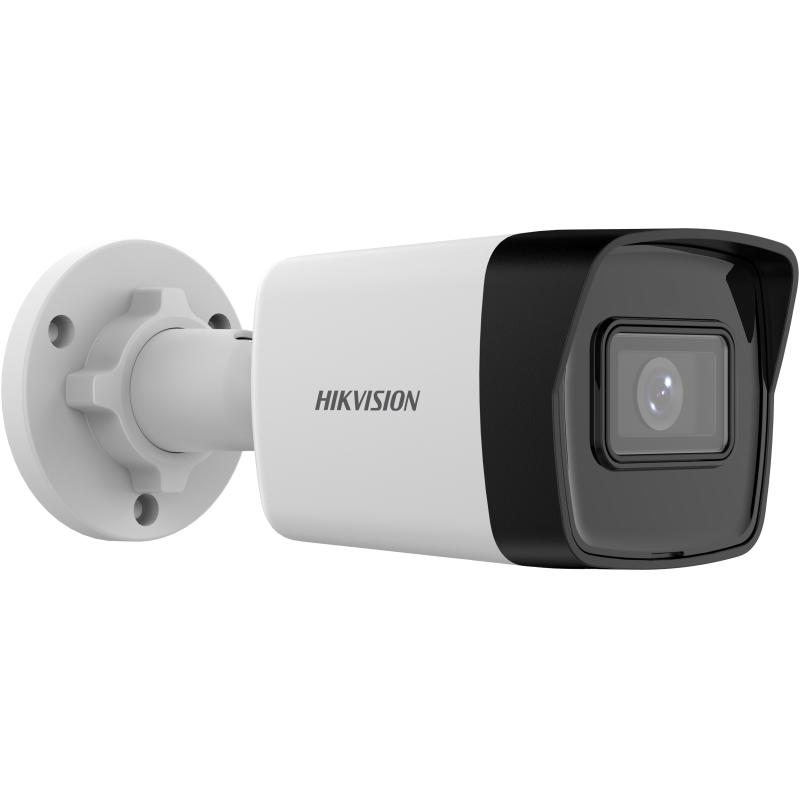

8MP 4K IR Fixed Bullet Network Camera
Contact for price
Model
DS‐2CD1083G0‐I
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The Hikvision DS-2CD1083G0-I is a professional-grade 8MP network bullet camera that provides crystal-clear 4K UHD video surveillance. Equipped with a 1/2.8" Progressive Scan CMOS sensor and a maximum resolution of 3840 × 2160 pixels, it captures highly detailed images suitable for monitoring entrances, parking lots, warehouses, offices, and residential properties.
The camera utilizes advanced H.265+ video compression technology, significantly reducing bandwidth and storage requirements while maintaining excellent image quality. Its 120 dB True Wide Dynamic Range (WDR) technology ensures clear images in challenging lighting environments where both bright and dark areas are present.
For nighttime surveillance, the DS-2CD1083G0-I incorporates Hikvision's EXIR 2.0 infrared technology, providing uniform illumination and clear imaging up to 30 meters in complete darkness. Smart IR functionality helps prevent overexposure of nearby objects, ensuring balanced night-time images.
Built with an IP67-rated weatherproof housing, the camera is protected against dust, rain, and harsh environmental conditions, making it suitable for outdoor installations. The camera also supports PoE (Power over Ethernet), simplifying installation by transmitting both power and data through a single network cable.
Whether deployed for home security, business monitoring, retail surveillance, or industrial protection, the Hikvision DS-2CD1083G0-I offers reliable 24/7 performance with exceptional 4K image quality.
The camera utilizes advanced H.265+ video compression technology, significantly reducing bandwidth and storage requirements while maintaining excellent image quality. Its 120 dB True Wide Dynamic Range (WDR) technology ensures clear images in challenging lighting environments where both bright and dark areas are present.
For nighttime surveillance, the DS-2CD1083G0-I incorporates Hikvision's EXIR 2.0 infrared technology, providing uniform illumination and clear imaging up to 30 meters in complete darkness. Smart IR functionality helps prevent overexposure of nearby objects, ensuring balanced night-time images.
Built with an IP67-rated weatherproof housing, the camera is protected against dust, rain, and harsh environmental conditions, making it suitable for outdoor installations. The camera also supports PoE (Power over Ethernet), simplifying installation by transmitting both power and data through a single network cable.
Whether deployed for home security, business monitoring, retail surveillance, or industrial protection, the Hikvision DS-2CD1083G0-I offers reliable 24/7 performance with exceptional 4K image quality.
Specifications
Camera Specifications
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 3840*2160 |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.0 |
Illuminator
| Supplement Light Type | IR |
|---|---|
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
video
| H.264 Type | Baseline Profile,Main Profile,High Profile |
|---|
Network
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Wide Dynamic Range (WDR) | 120 dB |
|---|---|
| SNR | ≥ 52 dB |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privacy Mask | 4 regions of privacy mask |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
Event
| Basic Event | Motion detection , video tampering alarm, exception |
|---|---|
| Linkage | Notify surveillance center, trigger capture |
General
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
|---|---|
| Material | PLASTIC & METAL |
| Dimension | 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
