Featured

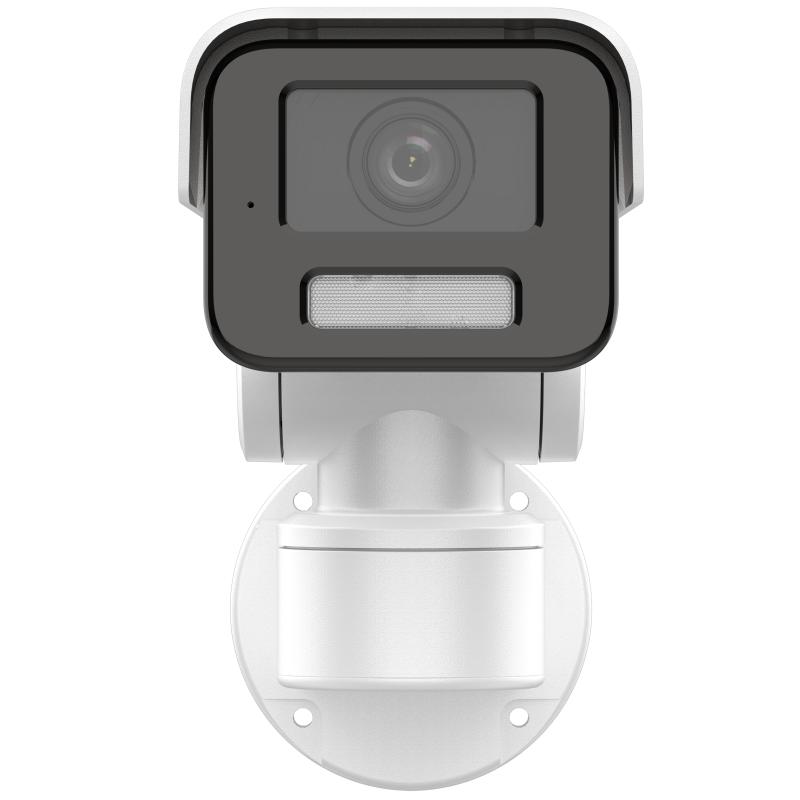

4 MP ColorVu Fixed Bullet PT Network Camera
Contact for price
Model
DS‐2CD1P47G2‐L
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The Hikvision DS-2CD1P47G2-L is a powerful 4MP network camera equipped with Hikvision's advanced ColorVu technology, enabling the camera to deliver bright and colorful images around the clock. Unlike conventional cameras that switch to black-and-white mode at night, this camera maintains full-color video even in extremely low-light environments, providing enhanced detail for accurate identification.
Featuring a high-resolution 4MP image sensor, the camera captures crystal-clear footage with excellent image quality. Its built-in warm supplemental light enhances nighttime visibility while preserving natural colors and reducing dark areas.
The camera supports H.265+ video compression, significantly reducing storage and bandwidth requirements while maintaining high video quality. With an IP67-rated weatherproof housing, the DS-2CD1P47G2-L is designed to withstand harsh weather conditions, making it suitable for both indoor and outdoor installations.
Its compact mini bullet design allows flexible mounting and easy installation in homes, offices, retail stores, warehouses, parking areas, and perimeter security applications.
Combining full-color imaging, efficient performance, and durable construction, the Hikvision DS-2CD1P47G2-L provides dependable 24/7 surveillance for modern security systems.
Featuring a high-resolution 4MP image sensor, the camera captures crystal-clear footage with excellent image quality. Its built-in warm supplemental light enhances nighttime visibility while preserving natural colors and reducing dark areas.
The camera supports H.265+ video compression, significantly reducing storage and bandwidth requirements while maintaining high video quality. With an IP67-rated weatherproof housing, the DS-2CD1P47G2-L is designed to withstand harsh weather conditions, making it suitable for both indoor and outdoor installations.
Its compact mini bullet design allows flexible mounting and easy installation in homes, offices, retail stores, warehouses, parking areas, and perimeter security applications.
Combining full-color imaging, efficient performance, and durable construction, the Hikvision DS-2CD1P47G2-L provides dependable 24/7 surveillance for modern security systems.
Specifications
Camera Specifications
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 Color imaging |
| Angle Adjustment | Pan: -100° to 100°,tilt: -20° to 45° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Focal Length & FOV | 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 113° 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 89° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | Max F1.0 |
| Smart Supplement Light | Yes |
Illuminator
| Supplement Light Type | White Light |
|---|---|
| Supplement Light Range | Up to 30 M |
Video
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Audio Type | Mono sound |
|---|---|
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Network
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|---|
| Simultaneous Live View | Up to 6 Channels |
| API | Open Network Video Interface (Profile S, Profile G (only -F model supports), Profile T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Web Browser | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Client | iVMS-4200, Hik-Connect |
| Wide Dynamic Range (WDR) | 120 dB |
|---|---|
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browse |
| Privacy Mask | 4 regions of privacy mask |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| On-Board Storage | N/A |
| Built-in Microphone | Yes |
| Reset Key | Yes |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|---|---|
| Linkage | Send email, notify surveillance center, trigger capture |
General
| Power | 12 VDC ± 25%, 0.91 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12.5 W |
|---|---|
| Material | Metal & Plastic |
| Dimension | 197.1 mm × 105 mm × 225.4 mm (7.8" × 4.1" × 8.9") |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
