Featured

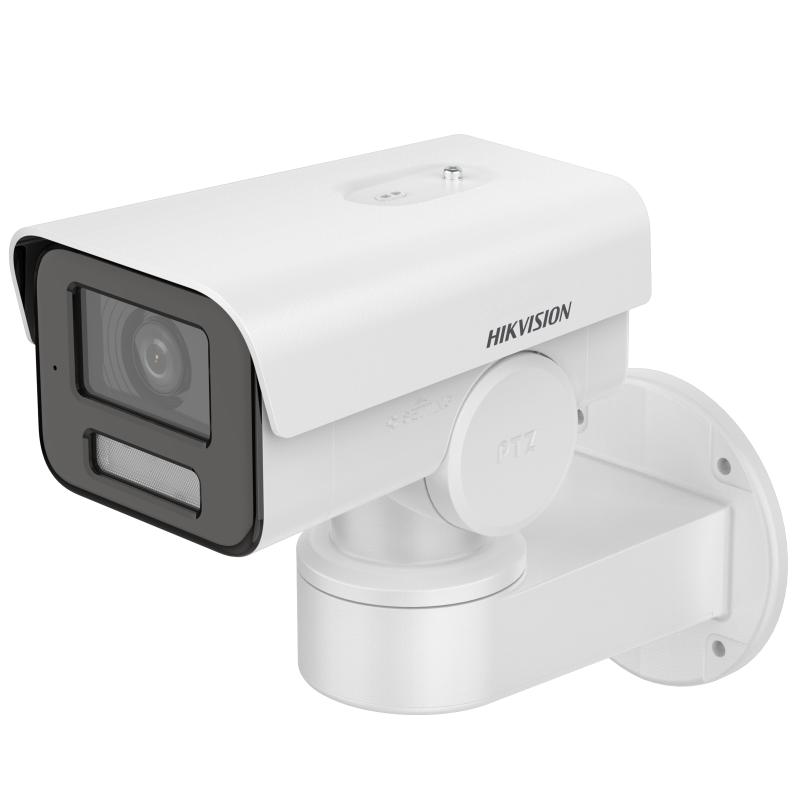

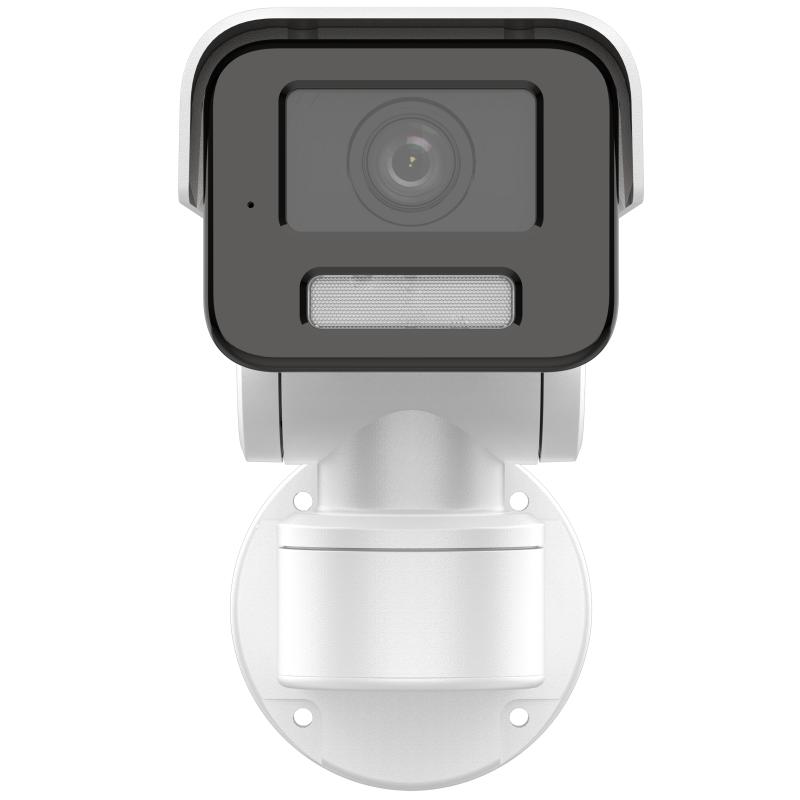

2 MP ColorVu Fixed Bullet PT Network Camera
Contact for price
Model
DS-2CD1P27G2-L
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The Hikvision DS-2CD1P27G2-L is a high-performance 2MP IP camera equipped with Hikvision's innovative ColorVu technology, allowing the camera to capture bright and colorful images even in extremely low-light conditions. Unlike traditional cameras that switch to black-and-white mode at night, this camera maintains full-color video 24/7 for enhanced detail and identification.
With a high-quality 2MP sensor and advanced image processing, the camera produces sharp and clear footage suitable for residential, retail, office, and commercial security installations. Its built-in warm supplemental light improves nighttime visibility while maintaining natural color reproduction.
The camera supports H.265+ video compression, reducing bandwidth usage and storage requirements while preserving image quality. The durable IP67-rated weatherproof housing ensures dependable operation in harsh outdoor conditions, protecting the camera from dust, rain, and extreme temperatures.
Its compact mini bullet design makes installation simple and discreet, making it an ideal solution for entrances, parking areas, shops, warehouses, and perimeter monitoring applications.
The Hikvision DS-2CD1P27G2-L delivers dependable full-color surveillance with excellent image quality and efficient performance for 24/7 security protection.
With a high-quality 2MP sensor and advanced image processing, the camera produces sharp and clear footage suitable for residential, retail, office, and commercial security installations. Its built-in warm supplemental light improves nighttime visibility while maintaining natural color reproduction.
The camera supports H.265+ video compression, reducing bandwidth usage and storage requirements while preserving image quality. The durable IP67-rated weatherproof housing ensures dependable operation in harsh outdoor conditions, protecting the camera from dust, rain, and extreme temperatures.
Its compact mini bullet design makes installation simple and discreet, making it an ideal solution for entrances, parking areas, shops, warehouses, and perimeter monitoring applications.
The Hikvision DS-2CD1P27G2-L delivers dependable full-color surveillance with excellent image quality and efficient performance for 24/7 security protection.
Specifications
Camera Specifications
| Image Sensor | 1/2.5" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 color imaging |
| Angle Adjustment | Pan: -100° to 100°,tilt: -20° to 45° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Focal Length & FOV | 2.8 mm, horizontal FOV 106°, vertical FOV 57°, diagonal FOV 126° 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | Max F1.0 |
Illuminator
| Supplement Light Type | White Light |
|---|---|
| Supplement Light Range | Up to 30 M |
| Smart Supplement Light | Yes |
Video
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Audio Type | Mono Sound |
|---|---|
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Network
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|---|
| Simultaneous Live View | Up to 6 Channels |
| API | Open Network Video Interface (Profile S, Profile G (only -F model supports), Profile T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Wide Dynamic Range (WDR) | 120 dB |
|---|---|
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browse |
| Privacy Mask | 4 regions of privacy mask |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| Built-in Microphone | Yes |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|---|---|
| Linkage | Send email, notify surveillance center, trigger recording (-F), trigger capture |
General
| Power | 12 VDC ± 25%, 0.91 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12.5 W |
|---|---|
| Material | Metal & Plastic |
| Dimension | 197.1 mm × 105 mm × 225.4 mm (7.8" × 4.1" × 8.9") |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
