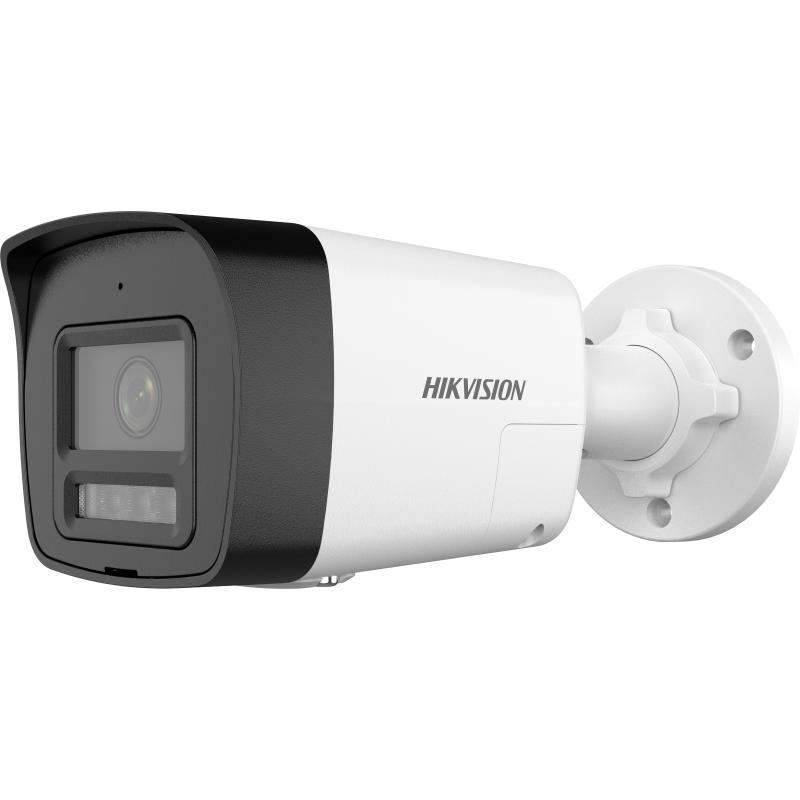

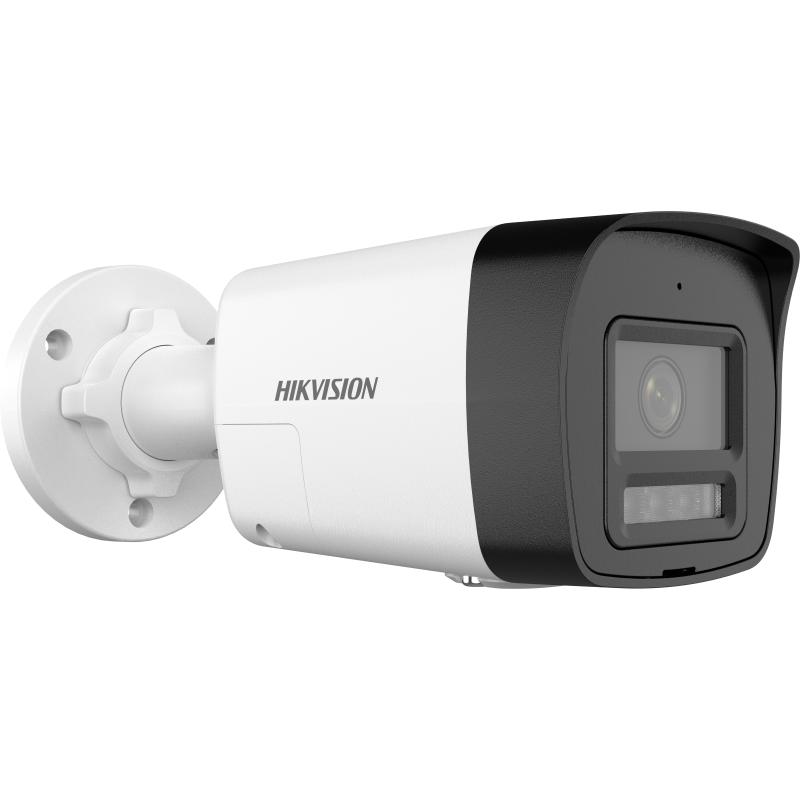

4MP Smart Hybrid Light Fixed Bullet Network Camera with Audio & Strobe Light Alarm
Contact for price
Model
DS-2CD1043G2-LIUF/SL
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The Hikvision DS-2CD1043G2-LIUF/SL is an advanced 4MP IP bullet camera engineered to deliver reliable and intelligent security monitoring. Featuring a high-performance CMOS sensor, the camera captures clear and detailed images with excellent color reproduction and superior image quality.
Its Smart Hybrid Light technology intelligently combines infrared and white light illumination to ensure optimal visibility in low-light and nighttime conditions. The built-in microphone provides synchronized audio recording, offering additional evidence and improved situational awareness.
For enhanced security, the camera incorporates active deterrence functions with an integrated strobe light and siren alarm that help warn and discourage unauthorized intrusions. Advanced H.265+ compression technology minimizes bandwidth and storage consumption while maintaining exceptional image quality.
Designed with a weather-resistant housing, the DS-2CD1043G2-LIUF/SL is suitable for both indoor and outdoor installations. Power over Ethernet (PoE) support simplifies deployment by allowing both power and data transmission through a single network cable. It is an ideal solution for homes, offices, retail stores, warehouses, schools, and other commercial applications requiring dependable surveillance.
Its Smart Hybrid Light technology intelligently combines infrared and white light illumination to ensure optimal visibility in low-light and nighttime conditions. The built-in microphone provides synchronized audio recording, offering additional evidence and improved situational awareness.
For enhanced security, the camera incorporates active deterrence functions with an integrated strobe light and siren alarm that help warn and discourage unauthorized intrusions. Advanced H.265+ compression technology minimizes bandwidth and storage consumption while maintaining exceptional image quality.
Designed with a weather-resistant housing, the DS-2CD1043G2-LIUF/SL is suitable for both indoor and outdoor installations. Power over Ethernet (PoE) support simplifies deployment by allowing both power and data transmission through a single network cable. It is an ideal solution for homes, offices, retail stores, warehouses, schools, and other commercial applications requiring dependable surveillance.
Specifications
Camera Specifications
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Focal Length & FOV | 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
Illuminator
| Supplement Light Type | IR,White Light |
|---|---|
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Audio
| Audio Type | Mono sound |
|---|---|
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM//AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Network
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Wide Dynamic Range (WDR) | 120 dB |
|---|---|
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privacy Mask | 4 programmable rectangle privacy masks |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB. |
| Reset Key | Yes |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
|---|---|
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light |
General
| Power | 12 VDC ± 25%, 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W |
|---|---|
| Material | Metal & Plastic |
| Flashing Light | Yes |
