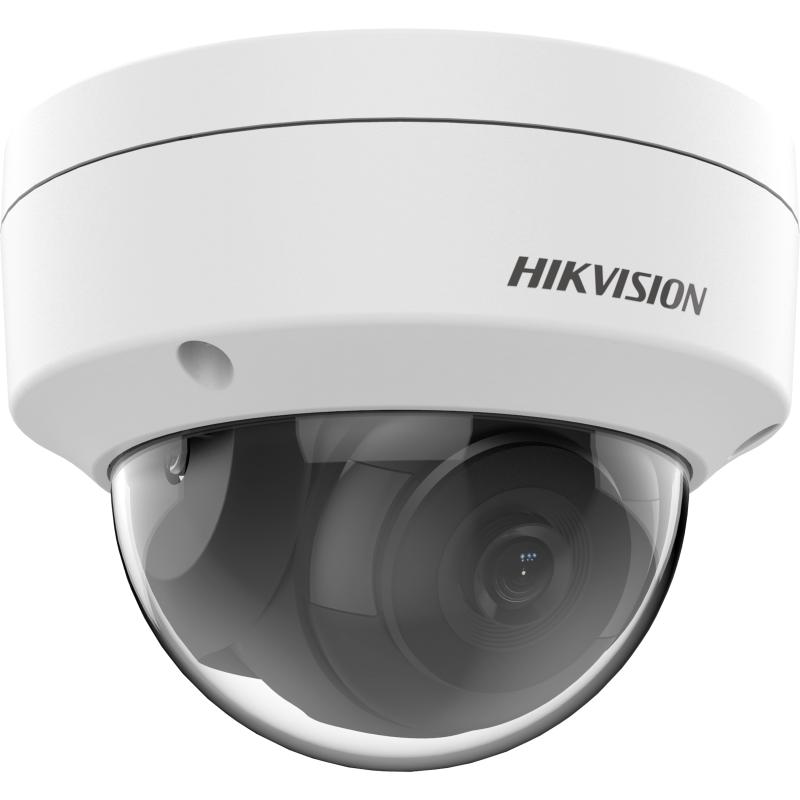

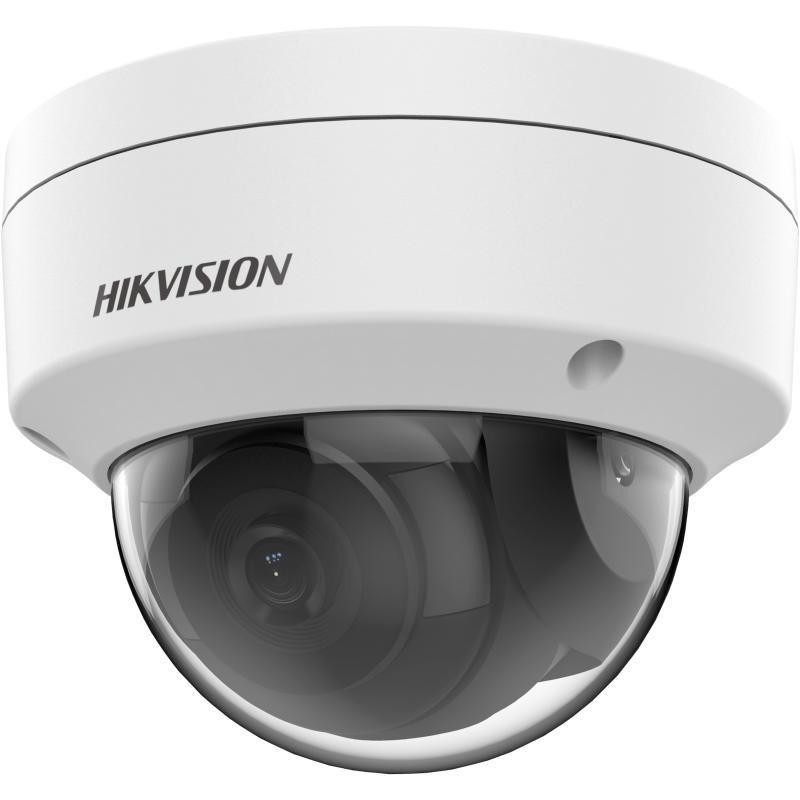

4MP IR Dome Network Camera
Contact for price
Model
DS‐2CD1143G0‐I
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The Hikvision DS-2CD1143G0-I is a professional 4MP IP dome camera engineered to provide dependable security monitoring with exceptional image quality. Equipped with a high-performance progressive scan CMOS sensor, the camera captures clear and detailed footage at high resolution for effective surveillance.
Its EXIR infrared technology ensures superior night vision performance by providing uniform illumination and clear images even in complete darkness. The camera supports advanced H.265+ video compression, significantly reducing bandwidth and storage requirements while maintaining excellent video quality.
Built with a durable and weather-resistant housing, the DS-2CD1143G0-I is suitable for both indoor and outdoor environments. Its compact dome design offers discreet installation, making it an excellent choice for homes, offices, schools, banks, shops, warehouses, and other commercial facilities.
Power over Ethernet (PoE) support simplifies installation by enabling power and data transmission through a single network cable, reducing installation costs and complexity.
Its EXIR infrared technology ensures superior night vision performance by providing uniform illumination and clear images even in complete darkness. The camera supports advanced H.265+ video compression, significantly reducing bandwidth and storage requirements while maintaining excellent video quality.
Built with a durable and weather-resistant housing, the DS-2CD1143G0-I is suitable for both indoor and outdoor environments. Its compact dome design offers discreet installation, making it an excellent choice for homes, offices, schools, banks, shops, warehouses, and other commercial facilities.
Power over Ethernet (PoE) support simplifies installation by enabling power and data transmission through a single network cable, reducing installation costs and complexity.
Specifications
Camera Specifications
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.01 Lux (F2.0, AGC ON) / B&W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 75° |
Lens
| Focal Length & FOV | 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° |
|---|---|
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F2.0 |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Iris Type | Fixed |
Illuminator
| Supplement Light Type | IR |
|---|---|
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
Video
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
Network
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Settings | Saturation, brightness, contrast, and sharpness adjustable by client software or web browser |
|---|---|
| Day & Night | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC,HLC,3D DNR |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
Event
| Basic Event | Motion detection, video tampering alarm, exception |
|---|---|
| Linkage | Upload to FTP, notify surveillance center, send email |
General
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
|---|---|
| Material | Base: metal, cover: plastic |
