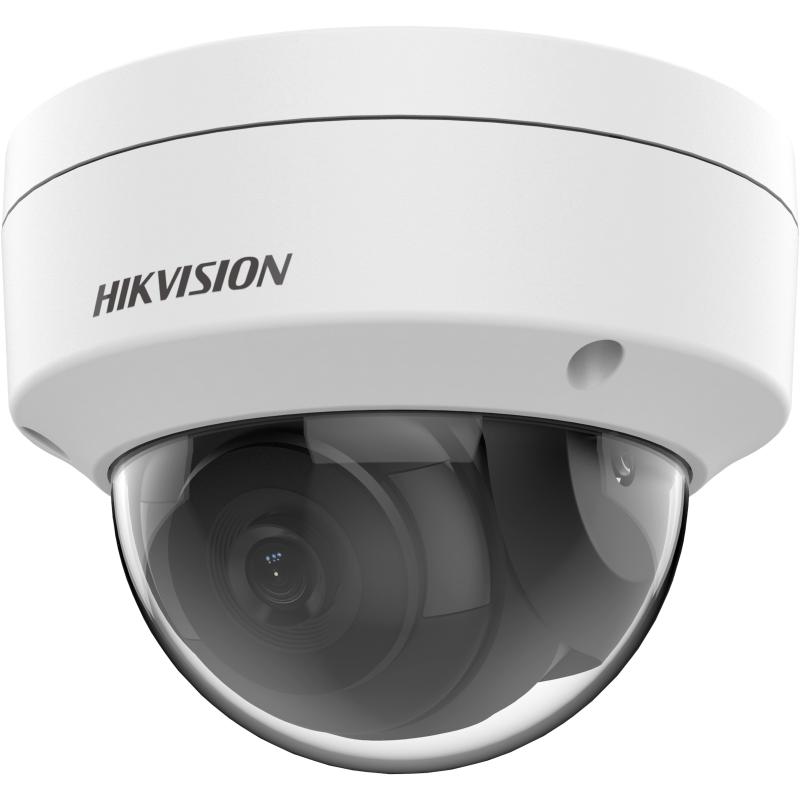

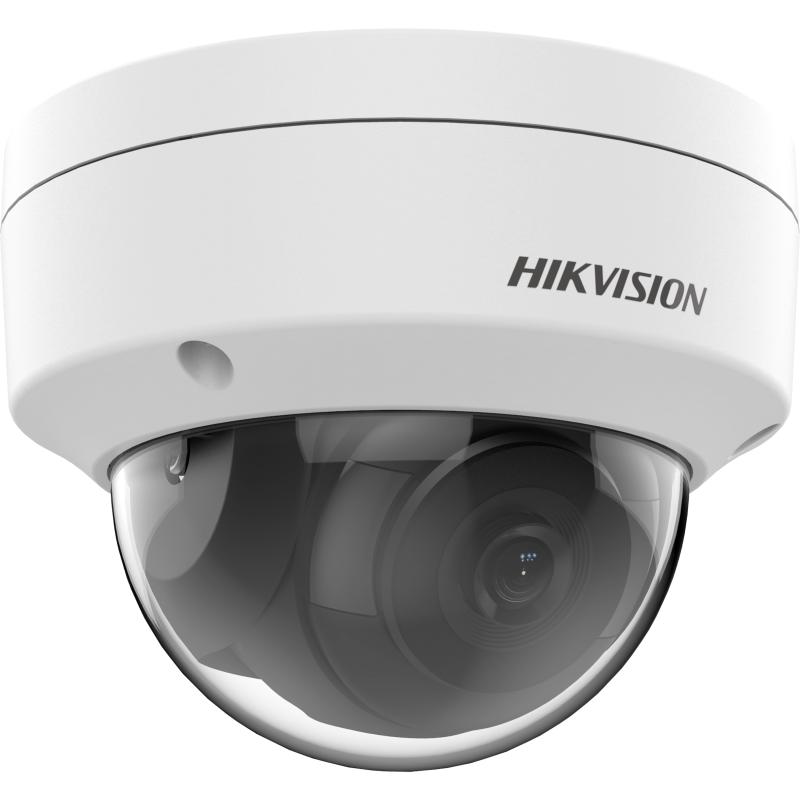

4K 8 MP Fixed Dome Network Camera
Contact for price
Model
DS‐2CD1183G0‐I
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The Hikvision DS-2CD1183G0-I is a professional-grade 8MP 4K IP dome camera engineered to provide superior image quality and dependable security monitoring. Equipped with a 1/2.8" Progressive Scan CMOS sensor and a maximum resolution of 3840 × 2160, it captures highly detailed video for effective identification and evidence collection.
Built with advanced H.265+ compression technology, the camera significantly reduces storage consumption and network bandwidth while maintaining excellent video quality. Its 120 dB True Wide Dynamic Range (WDR) ensures balanced images even in challenging lighting conditions such as entrances, windows, and areas with strong backlight.
For nighttime surveillance, the DS-2CD1183G0-I incorporates EXIR infrared technology with an illumination range of up to 30 meters, providing clear black-and-white images even in complete darkness. The camera supports motion detection, video tampering alarms, and multiple image enhancement features including 3D DNR, BLC, and HLC.
Its rugged IP67-rated weatherproof design and IK10 vandal-resistant construction make it suitable for both indoor and outdoor environments. Power can be supplied through 12V DC or PoE (802.3af), simplifying installation and reducing cabling costs.
Built with advanced H.265+ compression technology, the camera significantly reduces storage consumption and network bandwidth while maintaining excellent video quality. Its 120 dB True Wide Dynamic Range (WDR) ensures balanced images even in challenging lighting conditions such as entrances, windows, and areas with strong backlight.
For nighttime surveillance, the DS-2CD1183G0-I incorporates EXIR infrared technology with an illumination range of up to 30 meters, providing clear black-and-white images even in complete darkness. The camera supports motion detection, video tampering alarms, and multiple image enhancement features including 3D DNR, BLC, and HLC.
Its rugged IP67-rated weatherproof design and IK10 vandal-resistant construction make it suitable for both indoor and outdoor environments. Power can be supplied through 12V DC or PoE (802.3af), simplifying installation and reducing cabling costs.
Specifications
Camera Specifications
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 3840*2160 |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR Cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Focal Length & FOV | 2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.0 |
Illuminator
| Supplement Light Type | IR |
|---|---|
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.264+/H.265/ Sub-stream: H.265/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
Network
| Security | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address) |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP |
| User/Host | Up to 32 users: 3 user levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Wide Dynamic Range (WDR) | 120 db |
|---|---|
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser. |
| Privacy Mask | 4 regions of privacy mask |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Port |
|---|
Event
| Basic Event | Motion detection , video tampering alarm, exception |
|---|---|
| Linkage | Notify surveillance center, trigger capture |
General
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
|---|---|
| Material | Metal & Plastic |
| Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
