Featured

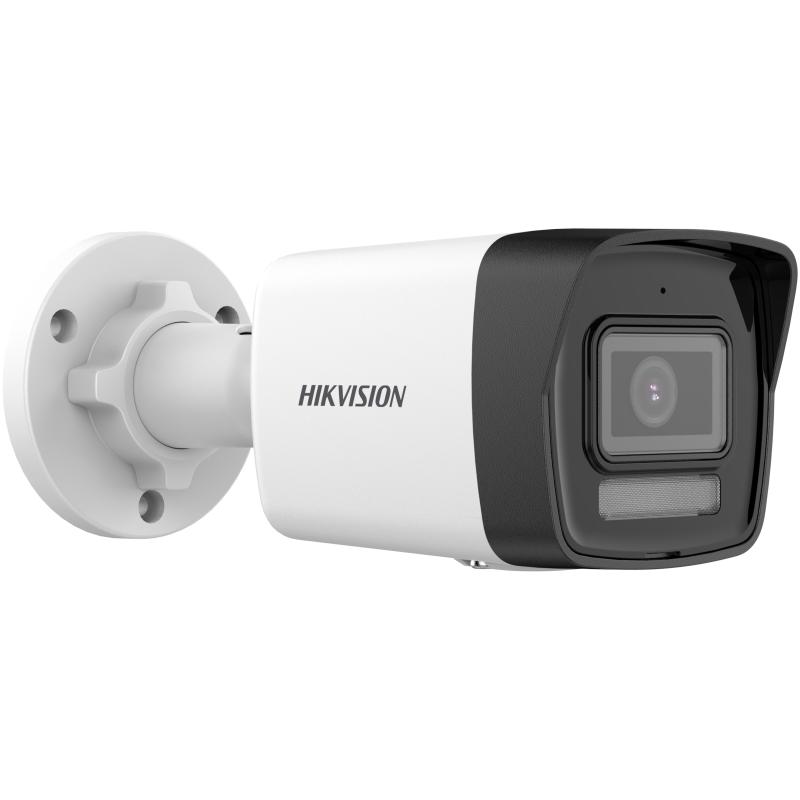

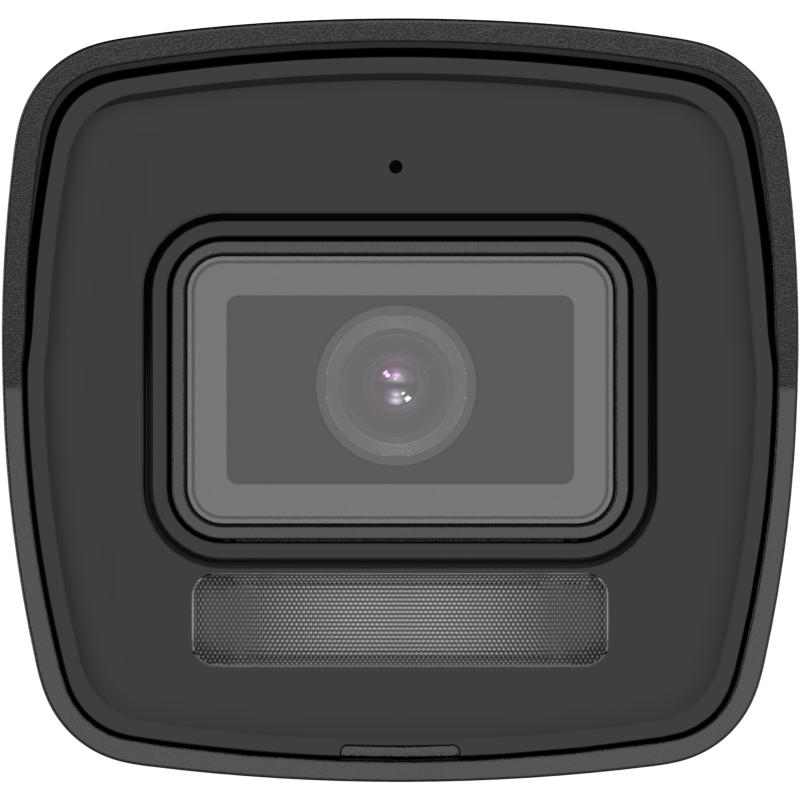

4 MP Smart Hybrid Light Fixed Bullet Network Camera
Contact for price
Model
DS‐2CD1043G2‐LIU
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The Hikvision DS-2CD1043G2-LIU is a high-performance 4MP IP bullet camera engineered for dependable video surveillance. Featuring a 1/3-inch progressive scan CMOS sensor, the camera captures high-resolution images with exceptional clarity and detail.
Its Smart Hybrid Light technology automatically switches between infrared and white light illumination to provide clear images even in low-light conditions. The built-in microphone enables real-time audio recording for enhanced monitoring and evidence collection.
With H.265+ video compression, the camera significantly reduces bandwidth and storage requirements while maintaining superior image quality. Its weather-resistant design makes it suitable for both indoor and outdoor installations, ensuring continuous protection for homes, offices, warehouses, retail stores, and other commercial facilities.
The DS-2CD1043G2-LIU supports Power over Ethernet (PoE), simplifying installation by transmitting power and data through a single cable. Combining advanced imaging, audio capability, and intelligent lighting, this camera offers a reliable and cost-effective security solution.
Its Smart Hybrid Light technology automatically switches between infrared and white light illumination to provide clear images even in low-light conditions. The built-in microphone enables real-time audio recording for enhanced monitoring and evidence collection.
With H.265+ video compression, the camera significantly reduces bandwidth and storage requirements while maintaining superior image quality. Its weather-resistant design makes it suitable for both indoor and outdoor installations, ensuring continuous protection for homes, offices, warehouses, retail stores, and other commercial facilities.
The DS-2CD1043G2-LIU supports Power over Ethernet (PoE), simplifying installation by transmitting power and data through a single cable. Combining advanced imaging, audio capability, and intelligent lighting, this camera offers a reliable and cost-effective security solution.
Specifications
Camera Specifications
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Focal Length & FOV | 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
Illuminator
| Supplement Light Type | IR,White Light |
|---|---|
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Audio Type | Mono sound |
|---|---|
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
Network
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
| Wide Dynamic Range (WDR) | 120 dB |
|---|---|
| SNR | ≥ 52 dB |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| On-Board Storage | -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
|---|---|
| Linkage | Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture |
General
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
|---|---|
| Material | Metal & Plastic |
| Dimension | 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
