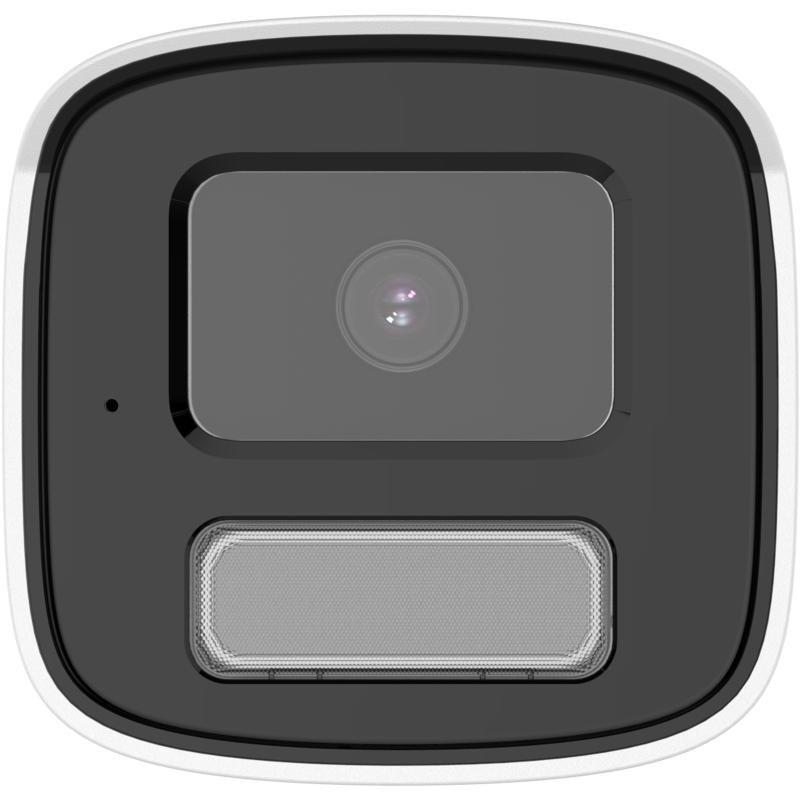

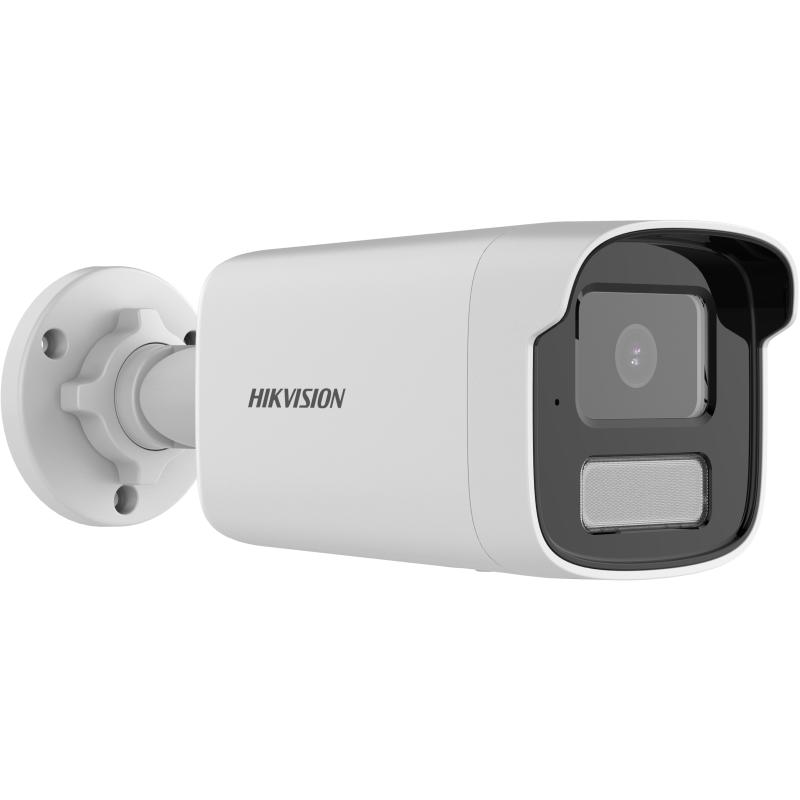

4 MP Fixed Bullet Network Camera
Contact for price
Model
DS‐2CD1T43G2‐LIU
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
Hikvision DS-2CD1T43G2-LIU is a high-performance 4MP Fixed Bullet Network Camera that combines advanced imaging technology with intelligent security features. Equipped with a 1/3" Progressive Scan CMOS sensor, the camera captures crystal-clear video at a maximum resolution of 2560 × 1440, ensuring excellent detail during both day and night monitoring.
The camera features Smart Hybrid Light technology, intelligently switching between infrared and white light illumination to provide optimal image quality while minimizing light pollution. With an illumination range of up to 50 meters, it ensures dependable surveillance even in complete darkness.
Powered by Hikvision's intelligent detection technology, the DS-2CD1T43G2-LIU can accurately distinguish humans and vehicles from other moving objects, significantly reducing false alarms. The built-in microphone enables real-time audio recording, adding an extra layer of security for comprehensive monitoring.
Advanced H.265+ video compression reduces bandwidth and storage consumption without compromising image quality. The camera also supports 120 dB Wide Dynamic Range (WDR), 3D Digital Noise Reduction, and IP67-rated weatherproof protection, making it suitable for demanding outdoor environments.
Whether deployed in homes, offices, warehouses, retail stores, schools, parking areas, or industrial facilities, the DS-2CD1T43G2-LIU delivers reliable and intelligent surveillance performance around the clock.
The camera features Smart Hybrid Light technology, intelligently switching between infrared and white light illumination to provide optimal image quality while minimizing light pollution. With an illumination range of up to 50 meters, it ensures dependable surveillance even in complete darkness.
Powered by Hikvision's intelligent detection technology, the DS-2CD1T43G2-LIU can accurately distinguish humans and vehicles from other moving objects, significantly reducing false alarms. The built-in microphone enables real-time audio recording, adding an extra layer of security for comprehensive monitoring.
Advanced H.265+ video compression reduces bandwidth and storage consumption without compromising image quality. The camera also supports 120 dB Wide Dynamic Range (WDR), 3D Digital Noise Reduction, and IP67-rated weatherproof protection, making it suitable for demanding outdoor environments.
Whether deployed in homes, offices, warehouses, retail stores, schools, parking areas, or industrial facilities, the DS-2CD1T43G2-LIU delivers reliable and intelligent surveillance performance around the clock.
Specifications
Camera Specifications
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360° |
| Max Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
Lens
| Lens Type | Fixed focal lens, 4 mm and 6 mm optional |
|---|---|
| Focal Length & FOV | 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° |
| Focal Length & FOV | 6 mm, horizontal FOV 49°, vertical FOV 26°, diagonal FOV 57° |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Lens Mount | M12 |
Illuminator
| Supplement Light Type | Up to 50 m |
|---|---|
| Smart Supplement Light | Yes |
| Supplement Light Type | IR,White Light |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Main Stream | 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) |
| Sub-Stream | 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| H.265 Type | Main Profile |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit Rate Control | CBR,VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Audio Sampling Rate | 8 kHz/16 kHz |
|---|---|
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
Network
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|---|---|
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
| Client | iVMS-4200,Hik-Connect |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Day/Night Switch | Day,Night,Auto,Schedule |
|---|---|
| Image Enhancement | BLC,HLC,3D DNR |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable rectangle privacy masks |
| SNR | ≥ 52 dB |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
Interface
| On-Board Storage | -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Reset Key | Yes |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
|---|---|
| Linkage | Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture |
General
| Material | PLASTIC & METAL |
|---|---|
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
