Featured

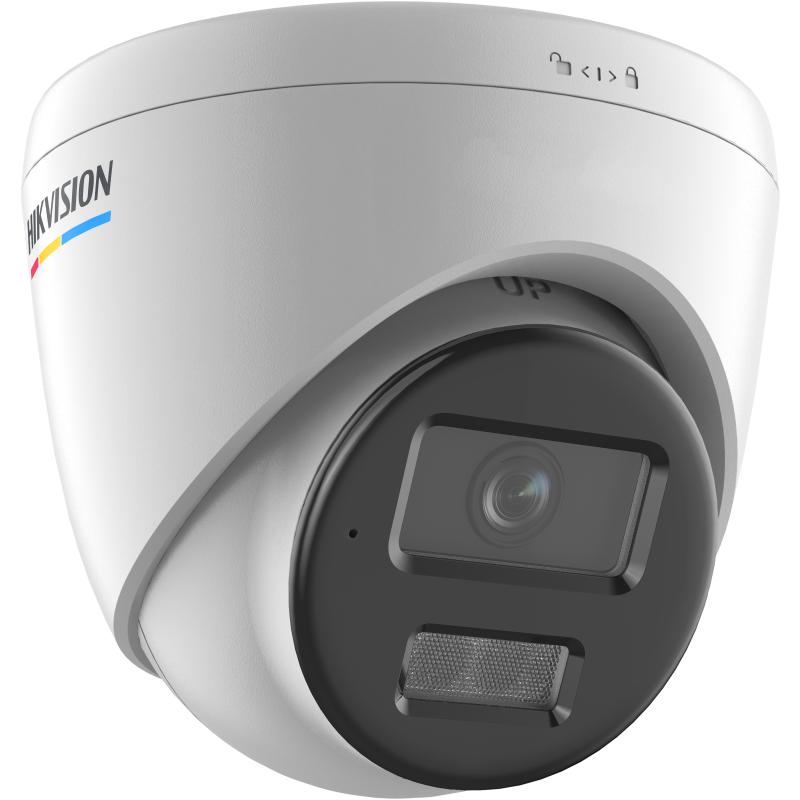

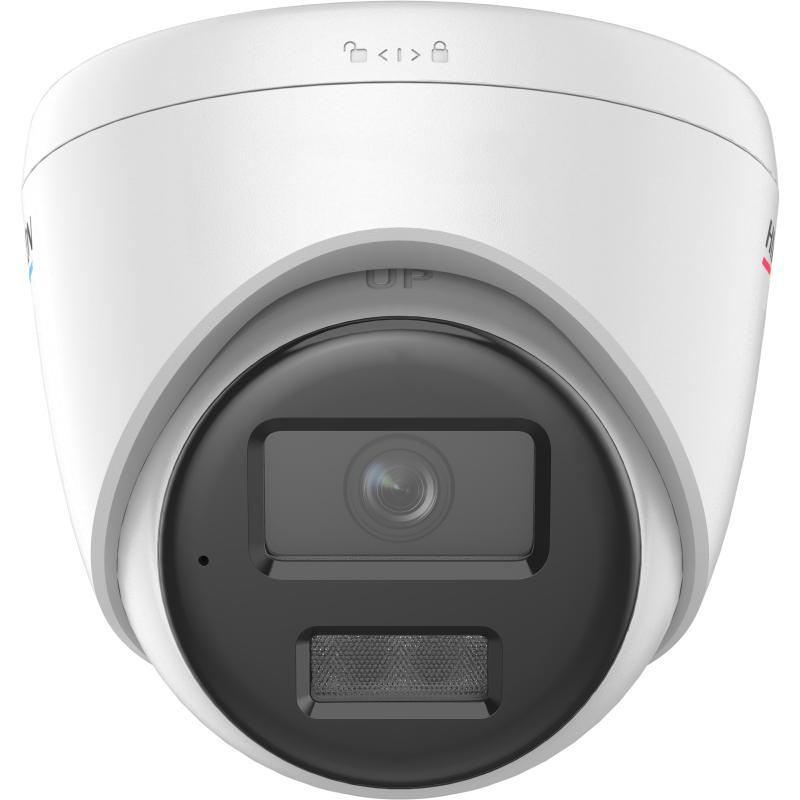

4 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera
Contact for price
Model
DS-2CD1347G2H-LIU
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The Hikvision DS-2CD1347G2H-LIU is a powerful 4MP fixed turret network camera that combines high-definition video, intelligent lighting, and audio recording to provide comprehensive security coverage. Designed for both indoor and outdoor environments, this camera is ideal for homes, offices, retail stores, warehouses, schools, and parking areas.
Equipped with a high-performance 1/3" Progressive Scan CMOS sensor, the camera captures detailed images at a maximum resolution of 2560 × 1440 (4MP). Its advanced Smart Hybrid Light technology automatically switches between infrared and white light illumination, ensuring optimal visibility and providing full-color images in low-light conditions while reducing unnecessary light pollution.
The built-in microphone enables synchronized audio recording, allowing users to capture both video and sound for enhanced evidence collection and situational awareness. With support for H.265+ video compression, the DS-2CD1347G2H-LIU significantly reduces bandwidth and storage consumption while maintaining exceptional image quality.
Advanced image enhancement technologies including 120 dB Wide Dynamic Range (WDR), 3D Digital Noise Reduction (3D DNR), Backlight Compensation (BLC), and Highlight Compensation (HLC) ensure balanced and clear footage even in challenging lighting environments.
Constructed with an IP67-rated weatherproof housing, the camera offers excellent resistance against dust, rain, and harsh outdoor conditions. Power over Ethernet (PoE) support simplifies installation by transmitting both power and data through a single network cable, reducing installation time and cost.
The Hikvision DS-2CD1347G2H-LIU integrates seamlessly with Hik-Connect, NVRs, and ONVIF-compatible systems, making it an ideal solution for modern IP surveillance networks.
Equipped with a high-performance 1/3" Progressive Scan CMOS sensor, the camera captures detailed images at a maximum resolution of 2560 × 1440 (4MP). Its advanced Smart Hybrid Light technology automatically switches between infrared and white light illumination, ensuring optimal visibility and providing full-color images in low-light conditions while reducing unnecessary light pollution.
The built-in microphone enables synchronized audio recording, allowing users to capture both video and sound for enhanced evidence collection and situational awareness. With support for H.265+ video compression, the DS-2CD1347G2H-LIU significantly reduces bandwidth and storage consumption while maintaining exceptional image quality.
Advanced image enhancement technologies including 120 dB Wide Dynamic Range (WDR), 3D Digital Noise Reduction (3D DNR), Backlight Compensation (BLC), and Highlight Compensation (HLC) ensure balanced and clear footage even in challenging lighting environments.
Constructed with an IP67-rated weatherproof housing, the camera offers excellent resistance against dust, rain, and harsh outdoor conditions. Power over Ethernet (PoE) support simplifies installation by transmitting both power and data through a single network cable, reducing installation time and cost.
The Hikvision DS-2CD1347G2H-LIU integrates seamlessly with Hik-Connect, NVRs, and ONVIF-compatible systems, making it an ideal solution for modern IP surveillance networks.
Specifications
Camera Specifications
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
Camer
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
|---|
Lens
| Lens Type | Fixed Focal lens, 2.8 and 4 mm optional |
|---|---|
| Focal Length & FOV | 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114° 4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
Illuminator
| Supplement Light Type | IR White Light |
|---|---|
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline, Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.265 and H.265 Encoding |
Audio
| Audio Type | Mono Sound |
|---|---|
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
Network
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, UDP, QoS, FTP, SMTP |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance, adjustable by client software or web browser |
|---|---|
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Reset Key | Yes |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception |
|---|---|
| Linkage | Upload to memory card (-F model supports), trigger recording(-F model supports), upload to FTP,notify surveillance center, send email, trigger capture |
General
| Power | 12 VDC ± 25%, 0.5 A, max. 6.0 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W |
|---|---|
| Material | Metal & Plastic |
| Dimension | Ø110 mm × 93 mm (Ø4.33" × 3.66") |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
