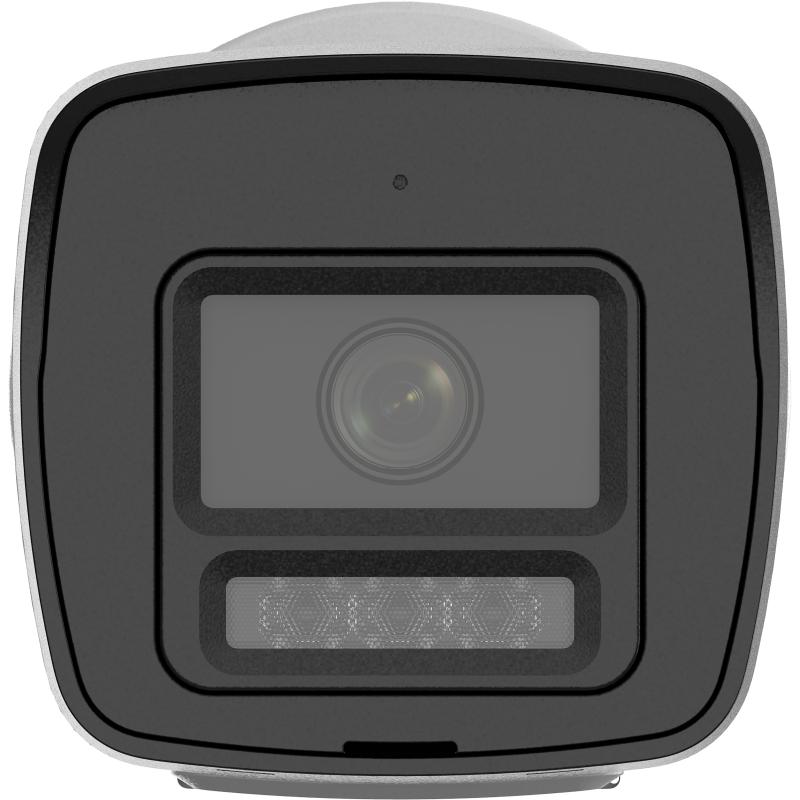

2MP Smart Hybrid Light Bullet Network Camera with Audio & Strobe Light Alarm
Contact for price
Model
DS‐2CD1023G2‐LIUF/SL
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The DS-2CD1023G2-LIUF/SL is a high-performance 2MP Full HD network bullet camera designed to provide advanced security monitoring for residential and commercial applications. Equipped with Hikvision's AcuSense technology, the camera accurately distinguishes humans and vehicles from other moving objects, significantly reducing false alarms and improving event detection efficiency.
Featuring Smart Hybrid Light technology, the camera intelligently switches between infrared and white light illumination to provide clear images both day and night, with a visibility range of up to 30 meters. The built-in microphone captures high-quality audio alongside video recordings, offering enhanced situational awareness and evidence collection.
For proactive security, the camera includes an active strobe light and audio alarm that can automatically deter intruders when unauthorized activity is detected. Advanced image enhancement technologies such as Digital WDR, BLC, and 3D DNR ensure sharp and balanced images even in challenging lighting conditions.
The camera supports H.265+ video compression, reducing bandwidth and storage requirements without compromising image quality. With ONVIF compatibility, PoE support, and remote access through Hik-Connect and iVMS-4200, installation and management are simple and convenient. Its IP67-rated weatherproof housing ensures reliable operation in rain, dust, and harsh outdoor environments, making it an excellent choice for continuous 24/7 surveillance.
Featuring Smart Hybrid Light technology, the camera intelligently switches between infrared and white light illumination to provide clear images both day and night, with a visibility range of up to 30 meters. The built-in microphone captures high-quality audio alongside video recordings, offering enhanced situational awareness and evidence collection.
For proactive security, the camera includes an active strobe light and audio alarm that can automatically deter intruders when unauthorized activity is detected. Advanced image enhancement technologies such as Digital WDR, BLC, and 3D DNR ensure sharp and balanced images even in challenging lighting conditions.
The camera supports H.265+ video compression, reducing bandwidth and storage requirements without compromising image quality. With ONVIF compatibility, PoE support, and remote access through Hik-Connect and iVMS-4200, installation and management are simple and convenient. Its IP67-rated weatherproof housing ensures reliable operation in rain, dust, and harsh outdoor environments, making it an excellent choice for continuous 24/7 surveillance.
Specifications
Camera Specifications
| Image Sensor | 1/2.9" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Focal Length & FOV | 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121° 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
Illuminator
| Supplement Light Type | IR,White Light |
|---|---|
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
Network
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Client | iVMS-4200,Hik-Connect |
| Wide Dynamic Range (WDR) | Digital WDR |
|---|---|
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable rectangle privacy masks |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB. |
Power & Physical
| Power | 12 VDC ± 25%, 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W |
|---|---|
| Material | Metal & Plastic |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Flashing Light | Yes |
