Featured

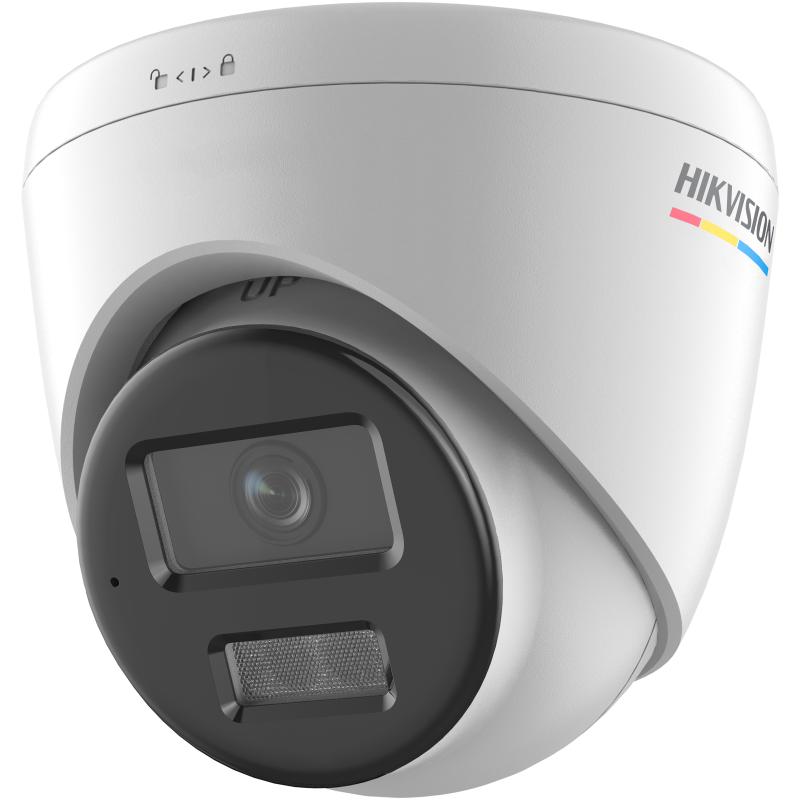

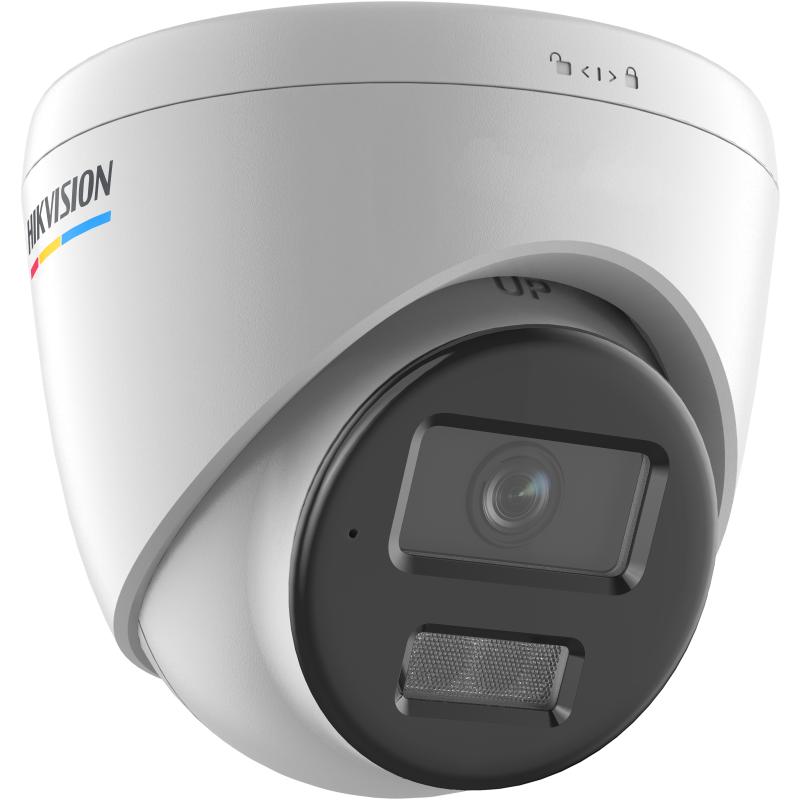

2 MP ColorVu 3.0 Fixed Turret Network Camera
Contact for price
Model
DS‐2CD1327G3‐LIU
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The Hikvision DS-2CD1327G3-LIU is an advanced 2MP IP turret camera equipped with ColorVu 3.0 technology that provides vivid and colorful images 24 hours a day, even in extremely low-light environments. Powered by a 1/2.8-inch Progressive Scan CMOS sensor and an F1.0 large-aperture lens, the camera captures clear details with exceptional brightness and color accuracy.
Its Smart Hybrid Light system combines IR and white light illumination with a coverage distance of up to 30 meters, ensuring excellent nighttime performance. Motion Detection 3.0 with human and vehicle classification helps reduce false alarms and improves security efficiency.
The built-in microphone allows real-time audio recording for enhanced evidence collection, while H.265+ video compression minimizes bandwidth and storage consumption. With IP67-rated water and dust resistance, the DS-2CD1327G3-LIU is suitable for both indoor and outdoor surveillance applications.
This camera is an ideal choice for residences, retail stores, offices, warehouses, parking areas, and commercial facilities requiring dependable 24/7 security monitoring.
Its Smart Hybrid Light system combines IR and white light illumination with a coverage distance of up to 30 meters, ensuring excellent nighttime performance. Motion Detection 3.0 with human and vehicle classification helps reduce false alarms and improves security efficiency.
The built-in microphone allows real-time audio recording for enhanced evidence collection, while H.265+ video compression minimizes bandwidth and storage consumption. With IP67-rated water and dust resistance, the DS-2CD1327G3-LIU is suitable for both indoor and outdoor surveillance applications.
This camera is an ideal choice for residences, retail stores, offices, warehouses, parking areas, and commercial facilities requiring dependable 24/7 security monitoring.
Specifications
Camera Specifications
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 1290*1080 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Focal Length & FOV | 2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth Of Field | 2.8 mm: 1.2 m to ∞ 4 mm: 1.3 m to ∞ |
Illuminator
| Supplement Light Type | IR White Light |
|---|---|
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main Stream:H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Scalable Video Coding (SVC) | H.264 and H.265 Encoding |
Audio
| Audio Type | Mono Sound |
|---|---|
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
Network
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP |
|---|---|
| Simultaneous Live View | Up to 6 Channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| User/Host | Up to 32 Users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200;Hik-Connect |
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11 Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Privacy Mask | 4 programmable rectangular privacy masks |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance, adjustable by client software or web browser |
|---|---|
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 db |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| On-Board Storage | -LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes, 1 built in Microphone |
| Reset Key | Yes |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception |
|---|---|
| Linkage | Upload to memory card/FTP,notify surveillance center, send email, trigger recording, trigger capture |
General
| Power | -LIUF: 12 VDC ± 25%, 0.52 A, max. 6.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W, -LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.52 A, max. 6.24 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.52 W |
|---|---|
| Material | Cover: Plastic, Main Body: Metal |
| Dimension | Ø110 mm × 102.7 mm (Ø4.33" × 4.04") |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Flashing Light | -LIU、-LIUF：NA -LIU(F)/SL：White Light -LIU(F)/SRB：Red and Blue Light |
